I have TUTS or Tutorial how to updates your Windows Phone without downloading files using Windows Device Recovery .

Are you tired always connection time out or You want to updates your Windows phone manually using Windows Device Recovery?
This is a step how i make on many windows Phone i revived.

Step how i do it

Check if your Internet connection is Stable. must need it
Download and Install "Windows Device Recovery Tool"
Run the Windows Device Recovery Tool.exe.

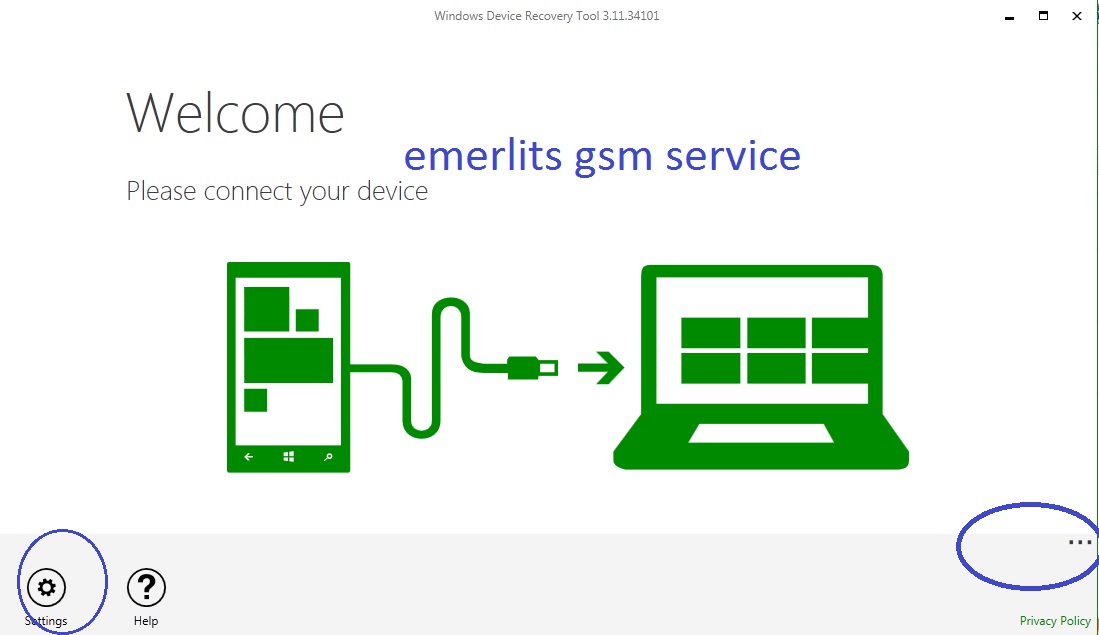

Click Setting on left down side

Figure 1

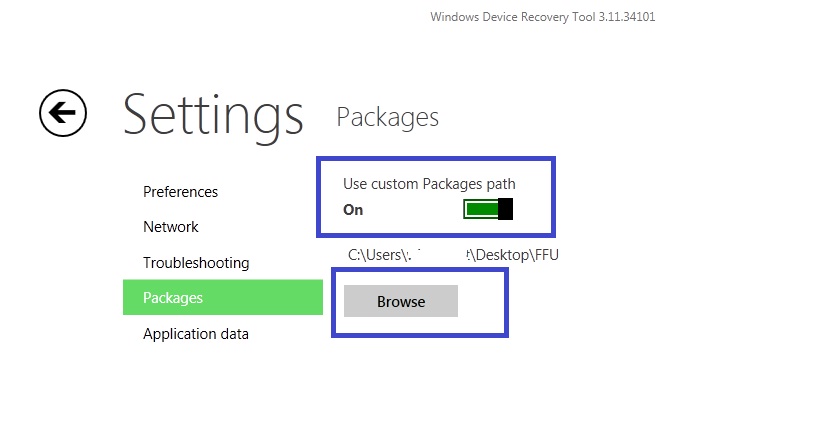

Inside settings , Select Packages
Make it ON from off the custom packages pack
Browse it from your desktop location or its your where you will save the downloaded file

Figure 2

After save it re-open windows device recovery tools and Connect windows phone now in off condition
Select on device manufacturer selection of tool.
Connect phone in off mode with at least 70% charge battery
Proceed to download section follow tools prompt.

Figure 3

Copy to text document or remember the Firmware version available on WDR tools.
then click Install software
When starting Download the essential files you will check the destination folder if  tools create it there.
Check the extention name FFU and copy also the full name to text document
Disconnect the phone then Copy the Product Code at the back housing of  phone it should like this
sample 059T105  and the Model Code sample RM-915 its per model you know.

You have now on text document

  • Firmware version
  • FFU
  • Product Code
  • Model Code

Now Proceed to download Go to this Link
On Your Browser Link on left side Find your Model Code and click it.
After selecting Model Code the result is in right side of browser, Find your Product Code and click it
You will see now the List of Firmware below, Click your Firmware version.
Download all given and save it to Folder that created of WDR tools in figure 2 above

After download all the essential firmware copy all and save to folder where you setup in Figure 3,
Already copy all Files ROM ?, proceed now to Updates your phone

  • Run the Windows Device Recovery Tool.exe.
  • Select Lumia on device manufacturer selection of tool.
  • Connect phone in off mode with atleast 70% charge battery
  • Proceed to download section follow tools prompt.

The Tools detect that you have complete Firmware Rom and it cannot download because it already complete there.
This is the small tips to Updates your Windows Mobile without waiting more time and failed.

I will continue if i have some more TUTS tutorial as far i Know i will share it.
Note! Before Writing ROM to device
NOTE: Extract the downloaded compress file and provide given password if asked, Do it at your own risk, After flashed the device is set automatic in reset condition, All your user data is lost.
Make sure you full BACK-UP the device first before to proceed flashing your phone for future purposes.
