Free RK BatchTool V1.7 for Rockchip



This RK BatchTool V_1.7, is for a chipsets called Rockchip intergrated circuit as far i know.
The operation of this Tools is easy, User must put the IMG file extension to Firmware Path then hitting upgrade button to satrt update the Firmware ROM of some Rockchip devices.

Here the basic step how to flash IMG firmware to Rockchips devices.

  • INSTALL THE ROCKCHIP DRIVER
Driver can be download here at DRIVER LIST
Download RK batch tool flashing driver

  • Driver is install manually by browsing advance in device manager of your pc which is 32 or 62 bit support

XP,Vista,Win2000,win7 and Win8 operating system

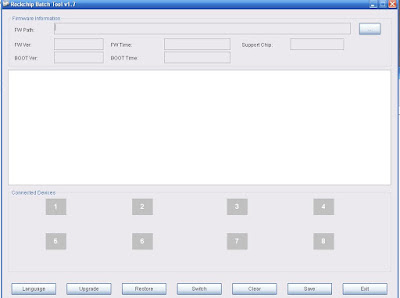

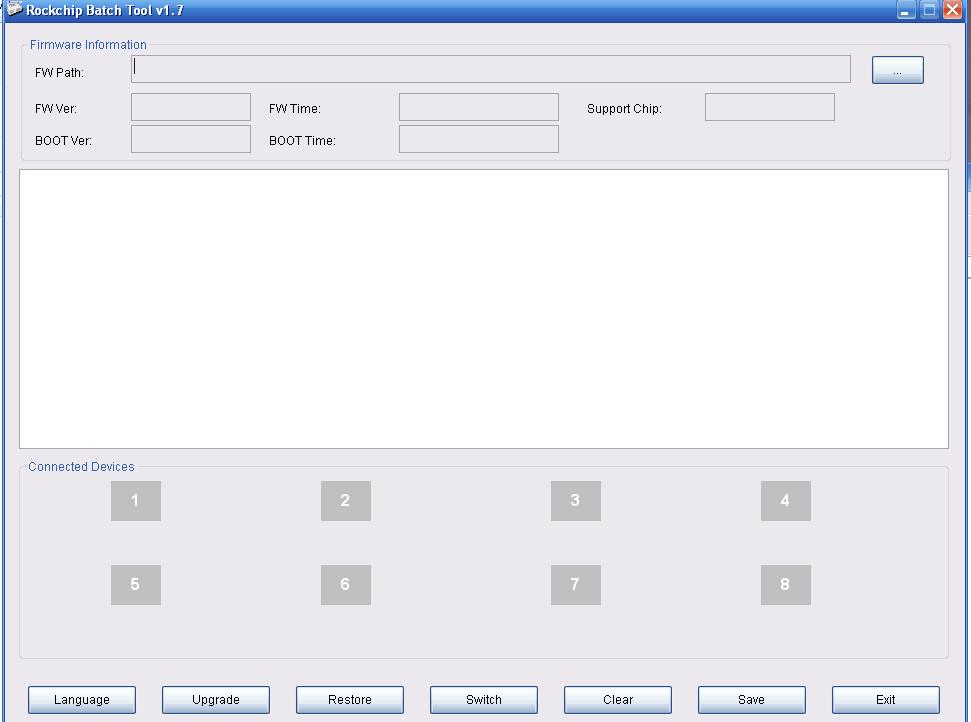

  • OPEN ROCKCHIP BATCH TOOL V1.7
  • BROWSE THE (IMG) FILE EXTENSION ex. your_model.img
  • CONNECT THE POWER-ON TABLET TO USB PORT OF PC USBPORT
Be sure you have driver installed already
  • AFTER YOU CONNECT, YOU SEE THE HIGHLIGHT COLOR on RK BatchTool THAT THE DEVICE IS DETECTED AS NORMAL DRIVER NOT DOWNLOAD MODE.
Some Rockchip devices need to manually boot to download mode. Some boot mode can found inside on motherboard, Printed on pcb near in pinout name 'boot'
User must short to ground or negative supply the pinout 'boot' in power off condition while connecting to USB port of PC or laptop.
OR
Some Rockchips devices is standalone to automatically switch to download mode using SWITCH button
If you succeed to reboot to download mode,
You will see now the green highlight color in number port which detected, The green highlight means that the device detected is in download mode and ready to flash the IMG firmware if user press the Upgrade button.

  • PRESS UPGRADE BUTTON START TO FLASH THE FW TO DEVICE
  • AFTER FINISH FLASH THE TABLET REBOOT AUTOMATICALLY
  • WAIT FOR 2-5 MINUTES IN BLUEWAVE LOGO LOADING STARTUP
RK BATCH TOOL V1.7
RK BATCH TOOL V1.8
Extract using winrar no password

This Video is for example of actual flashing the Firmware of Tablet have rockchip integrated circuits.
DOWNLOAD NVRAM FIRMWARE
DOWNLOAD DRIVERS Extract the downloaded compress file using 7 ZIP or winrar and provide given password if asked, Do it at your own risk, After flashing ! the device is set automatic in reset condition, All your user data is lost. Make sure back-up first before to proceed flashing your phone.
