Rockchips Tools V1.37 Wiper via loader 3xxx and 2xxx

Rockchips Wiper V1.37 is Tools for Rockchip chip set may found most on Tablet Android system.
This Tools can flash specific image extension (.img)  like system.img, recovery.img, misc.img etc. to Rockchip intergrated circuit devices
Most common use this to wipe data through PC USB port to device by flash misc.img.

The Boot-loader is file support to make it perfect and safe way to wipe the data to remove @ userdata on
Android Tablet, But be sure you may select the exacts same name of  rockchip IC

These are the Rockchip processor below


These five collection of RK chipset is credits to this Link

Steps guide how to config to wipe user data of device using this tools

1. Run RKAndroidTool.exe and install driver and connect your power off tablet at USB port of PC while holding Volume button.

To Download allow ads pop-up just wait 5 seconds and skip

2. Right click pointer mouse on the body side of tools to show menu and select Load config

3. Browse the folder where located you download tools and select Config MK908.cfg

4. After Load the cfg extension the check box appear and select loader that same processor name of device which is you want to wipe user data.

Note! Be sure select proper loader this step for your device
The Firmware Loader Bin file collection is located download below
Click here for RK Loader

Example Fig 1: RK3026

This picture sample of chips of rockchip have name RK3026
You must select loader RK3026/28.bin

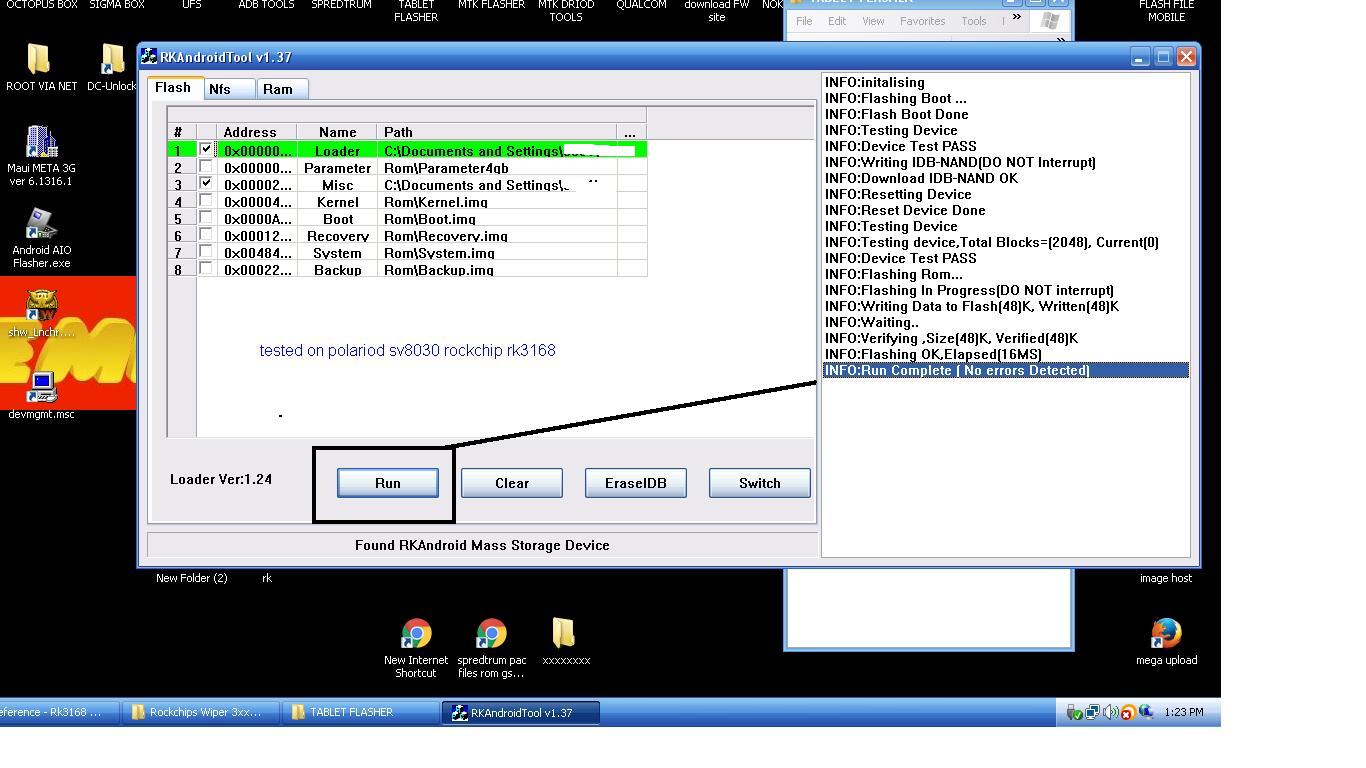

5. After select you loader for your device make it select the Misc image browse this and located on download folder of tools

6. The press Run to start wiping data

Rockchips Tools V1.37 Wiper via loader 3xxx and 2xxx can use about have problem about software related problem Hang, no power, password, pattern lock , anything about software related.
Best safe way is manual select flash the Misc file only.
Do it at your own risk, After flashing ! the device is set automatic in reset condition, All user data is lost.
Make sure back-up important data before to proceed flashing your phone.

NOTE: Extract the downloaded compress file and provide given password if asked, Do it at your own risk, After flashed the device is set automatic in reset condition, All your user data is lost. (Make sure full back-up the device first before to proceed flashing your phone for future purposes).
