Samsung I9152 Galaxy Mega 5.8 Firmware



This Orig Samsung Galaxy Mega model I9152 with firmware version I9152XWUANA6_OLBANA3 is successfully Flash via Odin Tools version 3.1,
The problem of this phone before i reprogram is hang on logo on Samsung Mega, Already i try to soft reset-factory reset by recovery boot but the problem was still...
I think the last option is Re-flash phone, And the tools prepared as follow below that may help you..


Procedure is easy


1.Odin tools V3.111.


Click this line will show tab how to use this tool step by step tutorial what tools about to use

2. Firmware ersion I9152XWUANA6_OLBANA3.zip

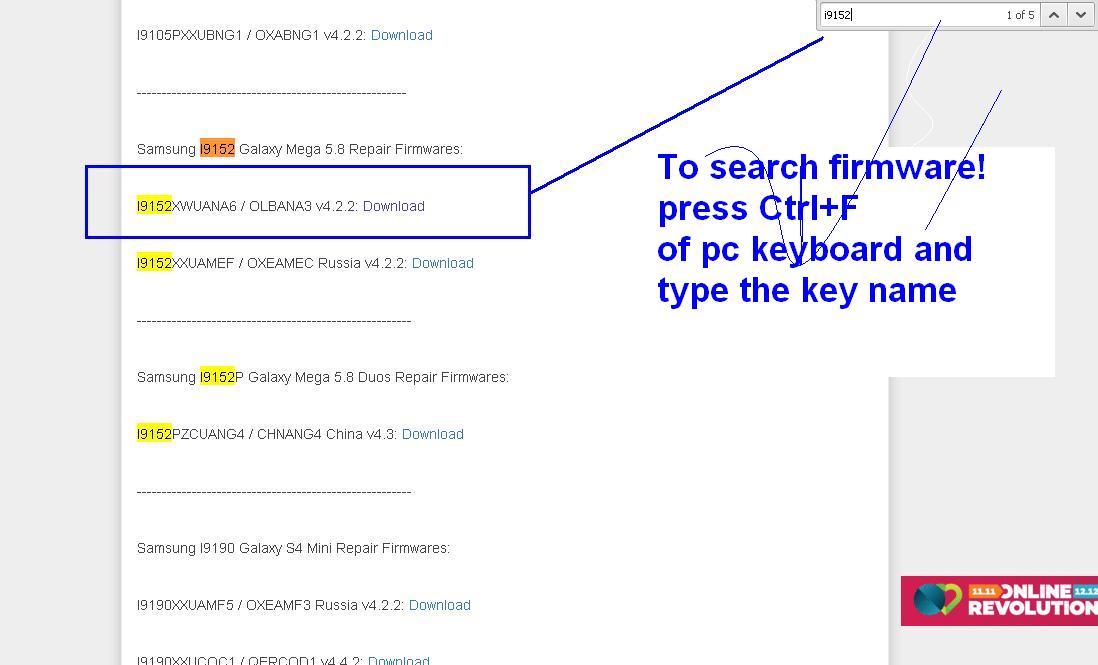

Click this line will show new tab to download firmware to search firmware press Ctrl+F of your keyboard

Figure tab


After finish download extract it anywhere you want and you see this file inside folder name
Firmware is NO PASSWORD
- CODE_I9100XWLSD_889555_REV00_user_low_ship.tar.md5
- CSC_VD2_I9100VD2LSC_889555_REV00_user_low_ship.tar.md5
- MODEM_I9100BULS1_REV_02_CL1221298.tar.md5
- u1_02_20110310_emmc_EXT4.pit


After you prepared this two proceed now to reprogram the phone via Odin tools, But make sure you not skip knowledge and you read carefully the procedure 1 Odin tools V3 latest above.

3.Open odin tools v3

Open Odin tools and connect device in usb port in Download mode (refer how to download mode on procedure 1 above).
Check if device is detected by odin tools you see on :ID COM. If its not check if there proper driver
Drivers may you need to properly connected to your PC/laptop you can download Here select Samsung driver all version.

4. Click AP section

Browse folder for CODE_I9100XWLSD_889555_REV00_user_low_ship.tar.md5
(this AP is safe flash because it reprogram only Android system only)
If you want full flash the arrangement is
  • u1_02_20110310_emmc_EXT4.pit is for PIT
  • MODEM_I9100BULS1_REV_02_CL1221298.tar.md5 is for CP
  • CSC_VD2_I9100VD2LSC_889555_REV00_user_low_ship.tar.md5 is for CSC
but i recommend safe flash AP files only.

Figure Odin tools successfully flash


after flash the phone automatic reboot to recovery mode and select wipe/data factory reset and reboot,
It takes 2-5 minutes on Samsung to make it use again, That's i experience i hope this helps, sowe for my English.
DOWNLOAD NVRAM FIRMWARE
DOWNLOAD DRIVERS Extract the downloaded compress file using 7 ZIP or winrar and provide given password if asked, Do it at your own risk, After flashing ! the device is set automatic in reset condition, All your user data is lost. Make sure back-up first before to proceed flashing your phone.
